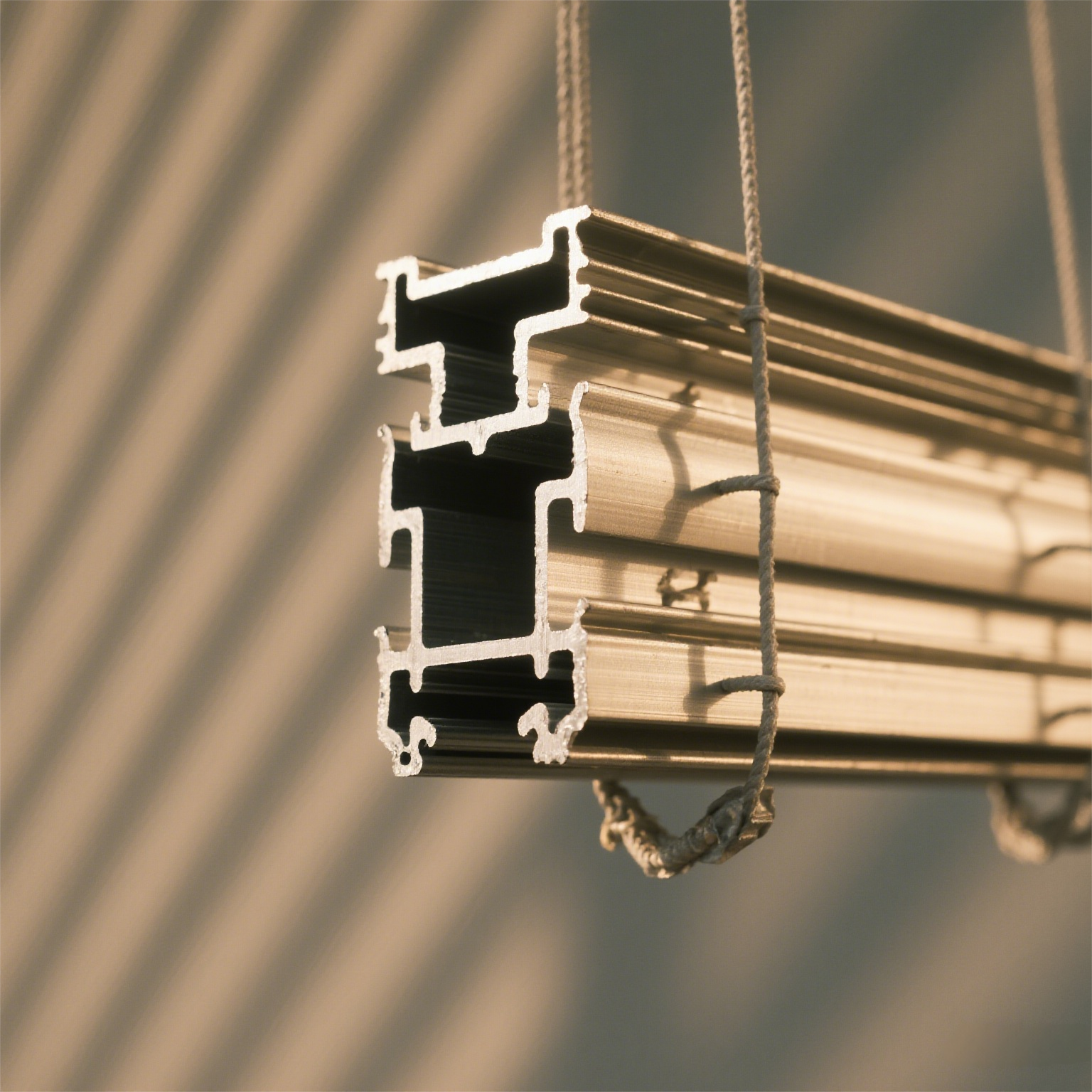

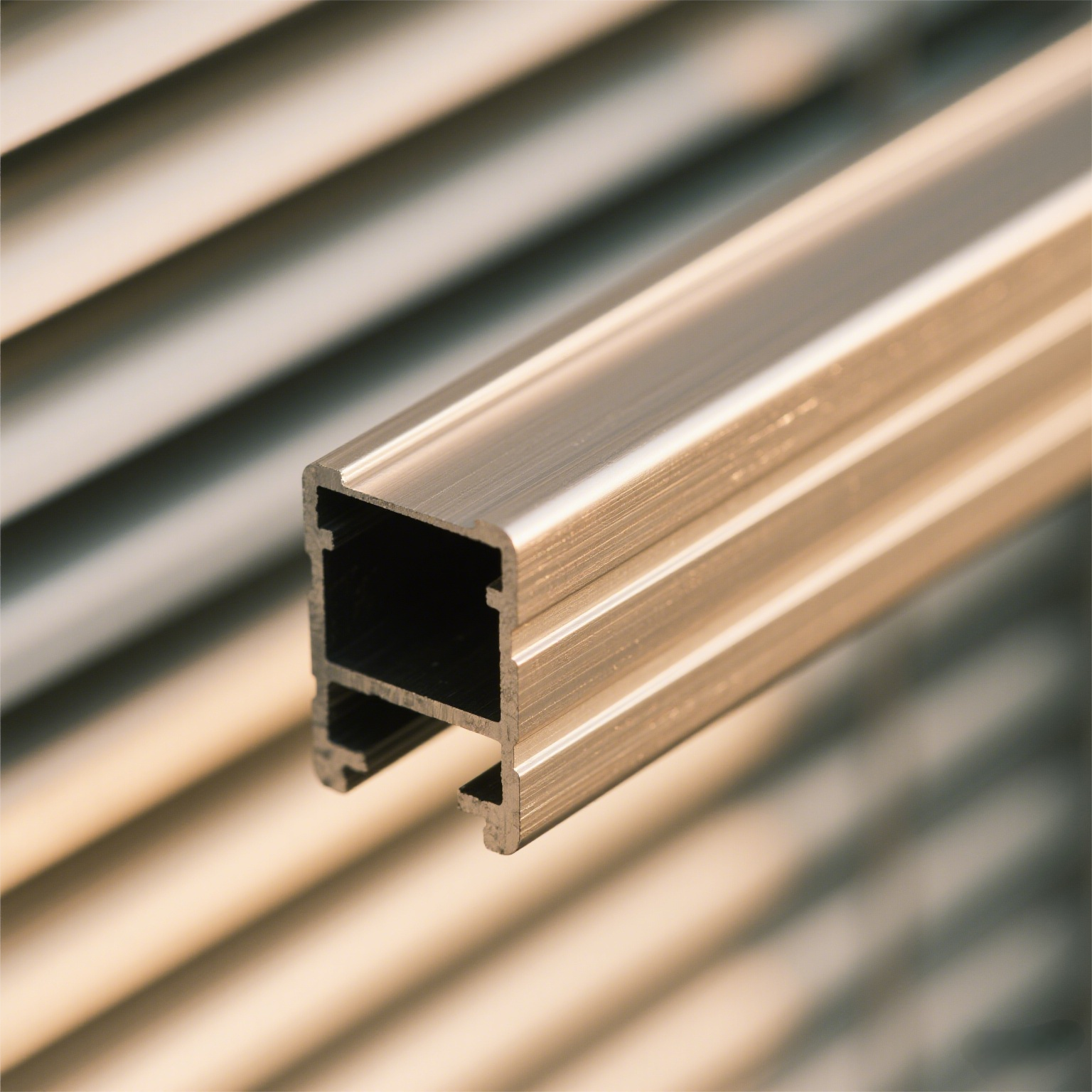

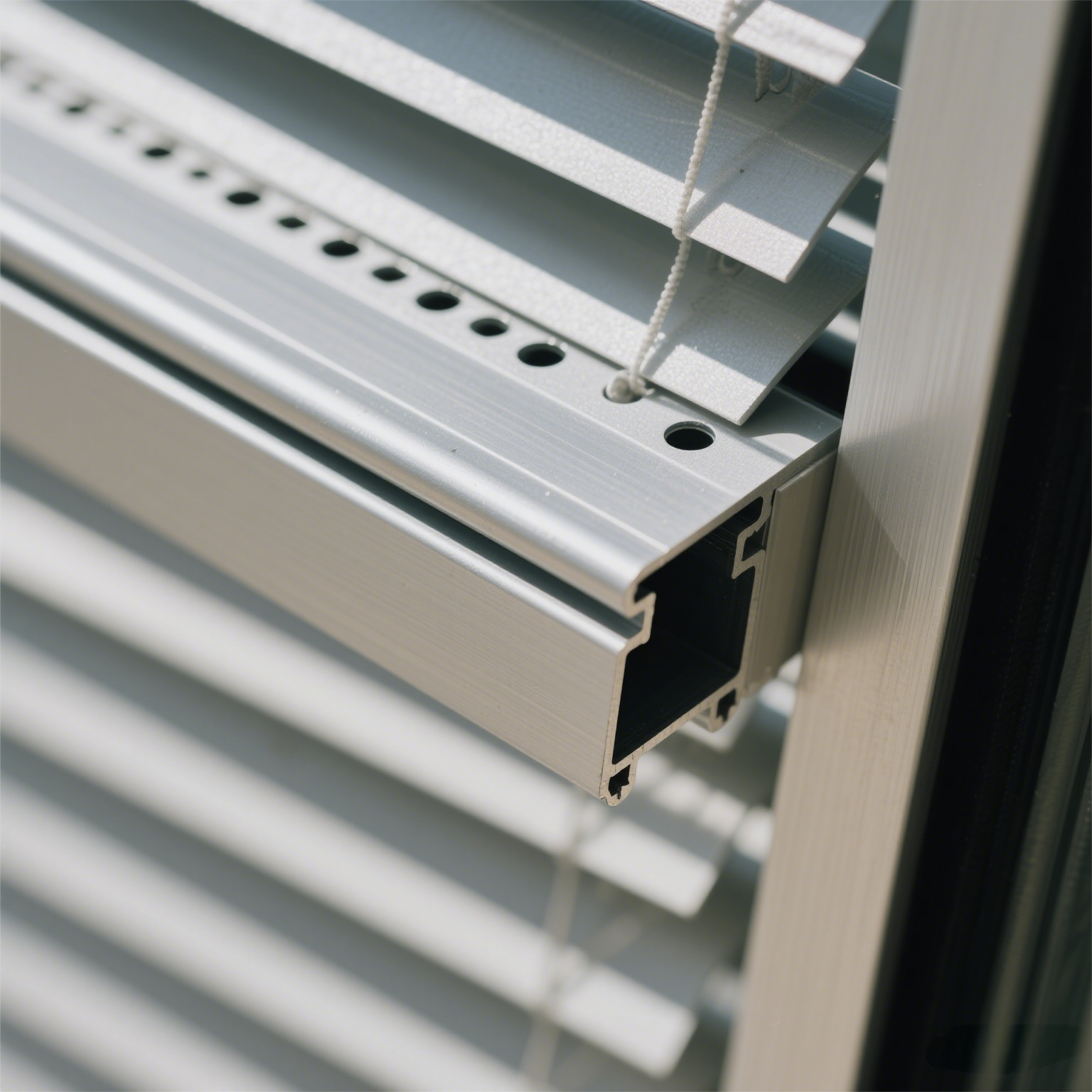

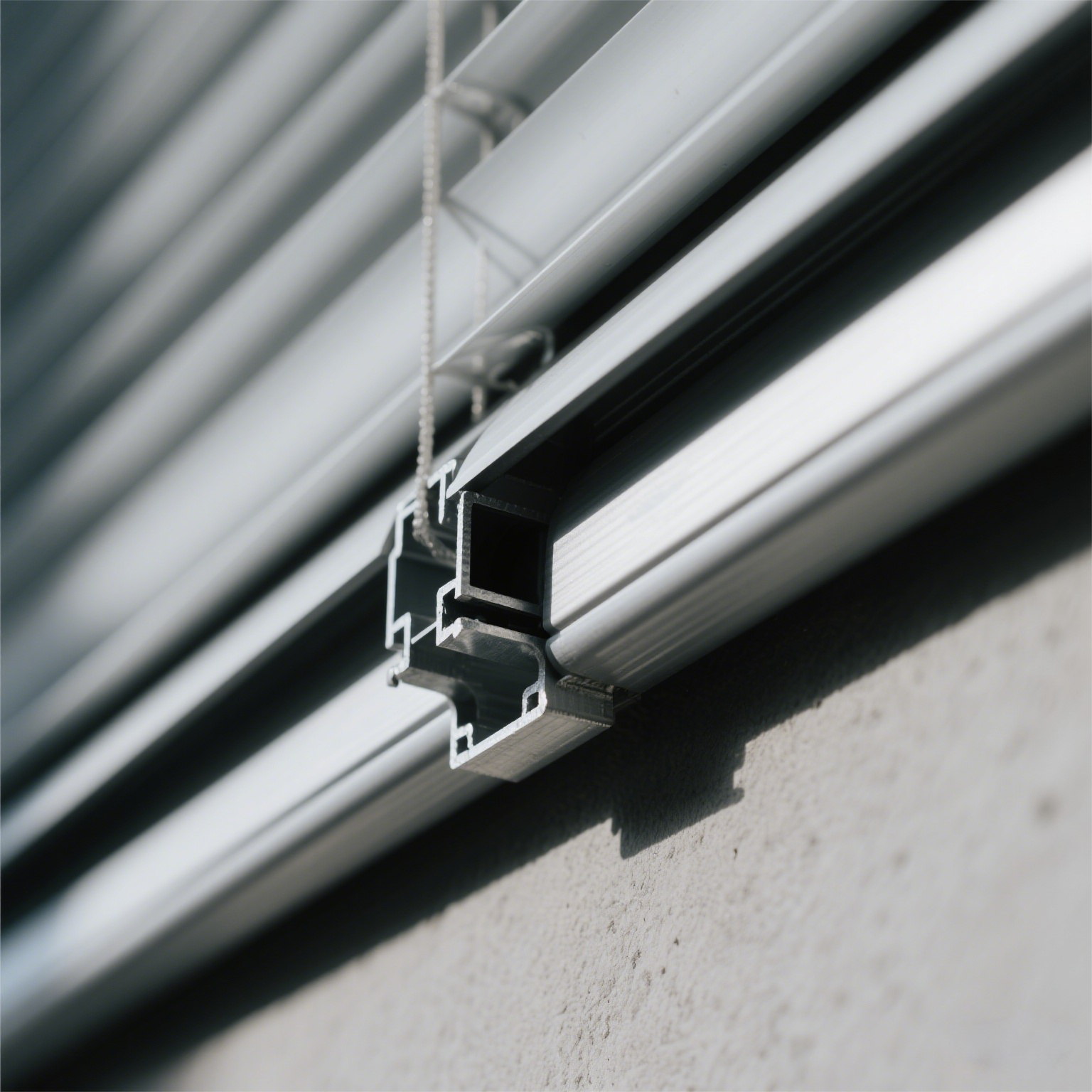

HIGH SPEED Aluminum Corrosion-Proof Baseboard Extrusion Profile Roller shutter window door
Product Introduction
1. Innovative Structural Design
Integrated Window Frame:
80mm Ultra-Wide Thermal Break Profile: Uses PA66 GF25 thermal break strips (U-value ≤1.3W/m²·K) for superior insulation.
Hidden Drainage System: Four-directional drainage channels with a capacity of ≥600mL/min to prevent water accumulation.
2. Intelligent Roller Shutter Integration
Dual-Power System
Electric Mode: Hall sensor positioning (accuracy ±1mm) with timed opening/closing support.
Manual Mode: Planetary gear reduction mechanism (operation force ≤20N) for backup control.
Safety Features
Obstruction Rebound: Pressure-sensitive stop function (≤15N) to prevent accidents.
Child Lock: Complies with EN 16281 standards for child safety.
3. Performance Verification
Sound Insulation
Insulating Glass (5+20Ar+5): Achieves sound reduction of Rw 42dB (EN ISO 10140).
Enhanced Noise Control: Combined with closed shutters, sound reduction increases to Rw 48dB.
Durability Testing
100,000 Cycle Test: Airtightness degradation ≤5% after extensive use.
EN 14609 Anti-Twist Test: Withstands 600N load without deformation.
4.Technical Parameters
| Project | Parameter |
| Profile Wall Thickness | 2.0mm (visible surface) / 1.4mm (non-visible) |
| Maximum Size | 1500mm×2400mm (single sash) |
| Shutter Light Transmittance | 1%-5% (adjustable blackout version) |
Product Details
| Place of Origin | Guangdong, China |
| Delivery Time | 15-20 days |
| Temper | T3-T8 |
| Application | Industrial or construction |
| Shape | Customized |
| Alloy or not | Is Alloy |
| Material | 6063 / 6061 |
| Brand Name | Yaoxing , Dazhen |
| Processing Service | Cutting, drilling, machining, punching, bending, tapping, etc |
| Surface treatment | Anodized, Powder coating, Polish, Electrophresis, Brush, Mill finish, wooden grain, or customized |
| Color | Customized different colors for clients to choose |
| Service | OEM & ODM |
| Certification | CE, ROHS, ISO9001 |
| Type | 100% QC Testing |
| Size / Thickness | General profile thickness from 0.3 mm to 5.0 mm, length from 3 meter to 6 meter or customized length. Anodized protection film thickness from 8~25 um, powder coating from 40~120 um. |
| Business type | Factory, Manufacturer |
Application
Passive Houses
Freiburg Smart Community, Germany: Overall window U-value of 0.8W/m²·K for energy efficiency.
Hospital ICUs
Shanghai Ruijin Hospital: Electric shutters enable one-key disinfection mode (closed-seal negative pressure).
High-End Office Buildings
The Shard, London: Exterior windows resist 2000Pa wind pressure; shutters offer a solar factor (SC) of 0.25.
Surface Treatment
We have advanced fully automated production lines, powder coating lines, wooden grain lines, and anodized production lines. You can always find the suitable surface treatment you want. Besides, our production process conforms to the ISO9001 standard and get the Qualicoat already. Surface treatment produce from domestic top suppliers.
Electrophoresis
Mill finish
Blasting
Wood Grain
Powder Coating
Anodizing
Optional Packing solution
kraft paper packing
PE film+ shrink film packaging
protective film for each piece
protective polybag for each piece
wooden cartons
woven bag packing
FAQs
Q1: What’s your MOQ? And what is your delivery time?
A1: 500 KG for each model. Delivery time is about 15~ 20 days after confirmation.
Q2: If I need ODM service, what can I do?
A2: We provide ODM service. You can send us samples that you have, or you can provide CAD drawing to us. And our designer will design and make official CAD drawing, after client’s confirmation, we will make new molds and test samples. After confirmation of samples, we will start official production.
Q3: If I need samples, could you support?
A3: We can provide you free samples for checking quality, size, and surface treatment. Delivery fee should be paid by our customers.
Q4: How much does it cost and time to open a new mold?
The amount of mold cost if determined by the size of the mold. The mold size is larger, the cost is more. It takes about 7~10 days to open new mold.
Q5: What is your payment term?
A5: T/T 30% of total value as deposit, 70% balance should be paid before shipment. L/C or other payment term can be negotiated.
Q6: How many CBMs does a 20ft or 40ft cabinet have, and how many aluminum can it hold?
A6: 20ft can hold 34 CBM, 40ft can hold 68 CBM. The calculation method is cross-section area after each aluminum product is packaged * length = CBM.
